The OXVA Xlim V3 pod comes in four resistances and fits most, but not all, devices in the XLIM series. Getting the resistance wrong is the most common and most costly error a buyer makes, because the wicking behaviour, the throat hit, and the practical nicotine delivery change significantly across the 0.4Ω to 1.2Ω range. This guide covers every specification verified directly against OXVA’s manufacturer pages, every compatible device confirmed, and the authenticity checks that separate a genuine pod from the clones that have been circulating in Dhaka’s informal market.
The OXVA Xlim V3 Top Fill Cartridge is available in 0.4Ω, 0.6Ω, 0.8Ω, and 1.2Ω resistances in both 2ml and 3ml capacities. It is compatible with most XLIM-series devices including the Xlim Pro, Xlim SQ Pro, Xlim SE 2, Xlim GO, and Xlim GO 2, but does not fit the Xlim C. Wattage recommendations per OXVA’s official spec page: 0.4Ω at 26-30W, 0.6Ω at 20-25W, 0.8Ω at 12-16W, and 1.2Ω at 10-12W. The V3 is a top-fill design, not side-fill; the V2 was side-fill.
What Changed Between the V2 and V3
The change that matters most is the fill method. The V2 used side-fill, which required a silicone plug on the side of the pod to be removed, filled, and replaced. The V3 replaced that with a top-fill system: the fill port is on the top of the pod, sealed with a rotating or sliding cover depending on the cartridge type. This is relevant to buyers who are switching from an older pod variant and expect the same refill process.
The second meaningful change is the coil architecture. OXVA’s UNITECH 2.0 structure uses a multi-layer cotton arrangement with engineered oil channels inside the coil housing. This is a manufacturer claim, not a KandyVape tested result. What we can say from OXVA’s own documentation is that the coil dimensions for the standalone replacement coil are 14.18 x 9.29 x 25.25mm, and that the pod dimensions for the 2ml V3 cartridge are 24.1 x 13.8 x 34.1mm, with the 3ml version measuring 24.1 x 13.8 x 36.95mm.
The V3 is also the first XLIM cartridge to be available as both a 2ml and a 3ml variant under the same “Top Fill” label. Both carry the same four resistance options. The capacity choice does not affect resistance or wattage; it affects how long you go between refills. OXVA’s cartridge specification page, which we verified these dimensions against, confirms that the full coil and pod specifications for every XLIM cartridge variant are listed at OXVA’s official cartridge reference.
The Resistance Decision: Which Ohm for Your Setup
This is where most buyers stall. Four resistance options exist, and the wrong choice is not recoverable once the pod has been used.

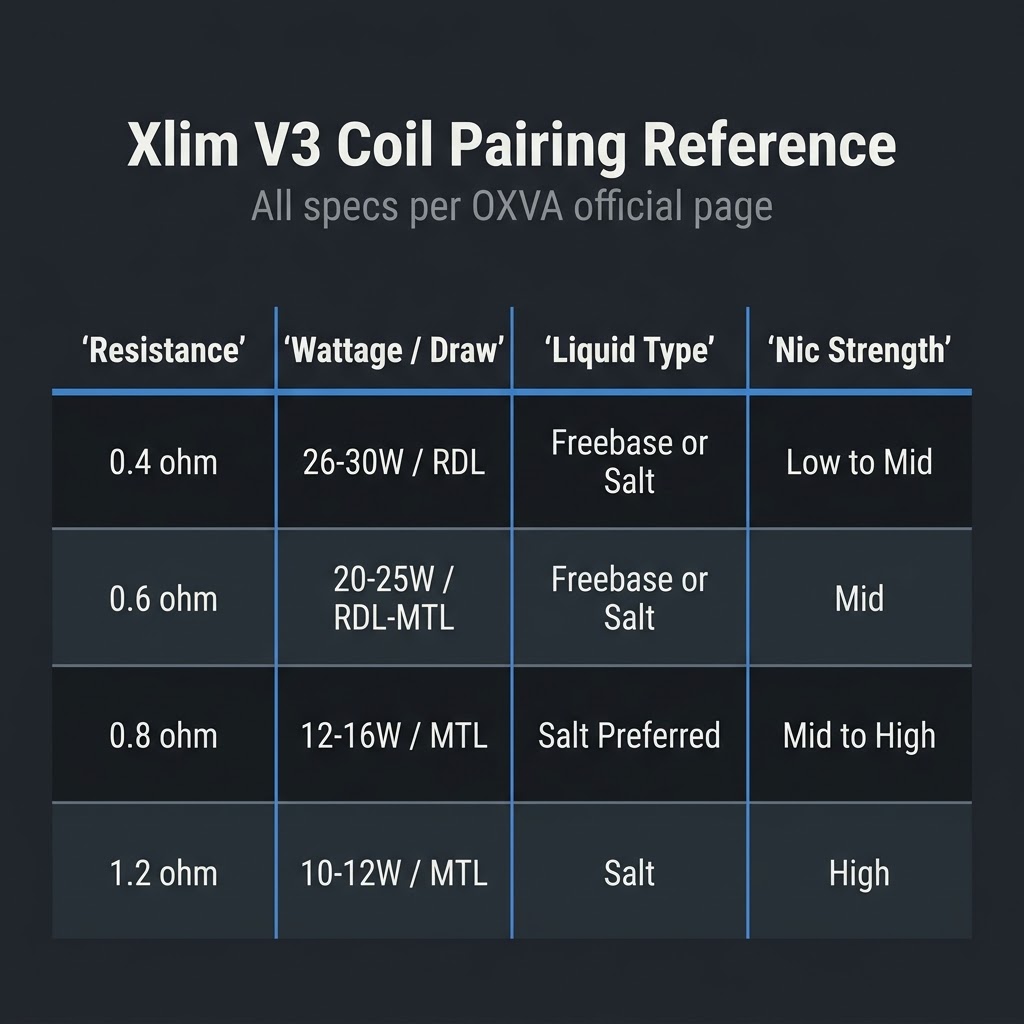

The table below is built entirely from OXVA’s manufacturer specifications. No figures have been estimated or inferred.
| Resistance | Wattage Range | Draw Style | Recommended Liquid |
| 0.4Ω | 26-30W | RDL (restricted direct lung) | Freebase or nicotine salt |
| 0.6Ω | 20-25W | RDL / MTL (hybrid) | Freebase or nicotine salt |
| 0.8Ω | 12-16W | MTL (mouth to lung) | Nicotine salt preferred |
| 1.2Ω | 10-12W | MTL | Nicotine salt |
The practical logic behind these pairings is worth understanding before you order. Resistance and wattage are inversely related in how they affect nicotine delivery and throat sensation. A lower resistance coil at higher wattage produces more vapour per draw, which means a given milligram concentration of nicotine hits harder and faster. This is why the 0.4Ω coil works at 26-30W with either freebase or nicotine salt: the draw is airier, the vapour volume is higher, and the experience softens the hit.
Run the logic backwards for the 1.2Ω coil. At 10-12W, the draw is tight and the vapour volume is lower. This is designed for nicotine salt at higher concentrations, because the restricted draw delivers nicotine without the vapour volume that would make a high-mg freebase liquid harsh. If you vape 50mg nicotine salt and prefer a cigarette-tight draw, the 1.2Ω coil is your pairing. If you vape 3mg freebase and want a looser, more open draw with noticeable vapour production, the 0.4Ω coil is the correct choice.
The 0.6Ω sits in the middle and is the most versatile. It covers both MTL and a moderate RDL draw, works with freebase and nicotine salt, and runs on almost any XLIM-series device without approaching the wattage ceiling of lower-output models.
A specific warning for buyers who run 50mg salt nicotine and are considering the 0.4Ω pod because it is cheaper or because it arrived first: this pairing is wrong. A high-wattage RDL coil delivering 50mg nicotine salt will produce throat hit severe enough that most people discontinue use within a few days. We would rather say that here than sell a pod combination that does not work for your setup and cannot be returned.
The propylene glycol and vegetable glycerin in your e-liquid also influence how the wicking behaves at different resistances. PubChem’s compound entry for propylene glycol documents it as a thin, water-miscible carrier, which is why high-PG liquids wick faster and can cause dry hits in lower-resistance coils at high wattage if the draw frequency is too high. High-VG liquids are thicker and wick more slowly, which suits lower wattage and tighter-draw coils better. For the 1.2Ω pod, a 70% VG liquid draws well; for the 0.4Ω pod at 28-30W, a 50/50 or 60% VG blend reduces dry-hit risk between draws.
Device Compatibility: What the V3 Pod Fits
OXVA’s official cartridge page explicitly states that the V3 Top Fill Cartridge is compatible with “XLIM SERIES ALL COMPATIBLE” with a single noted exception: the XLIM C uses a different coil and pod format and does not accept V3 pods. Every other current XLIM-series device accepts the V3 cartridge.

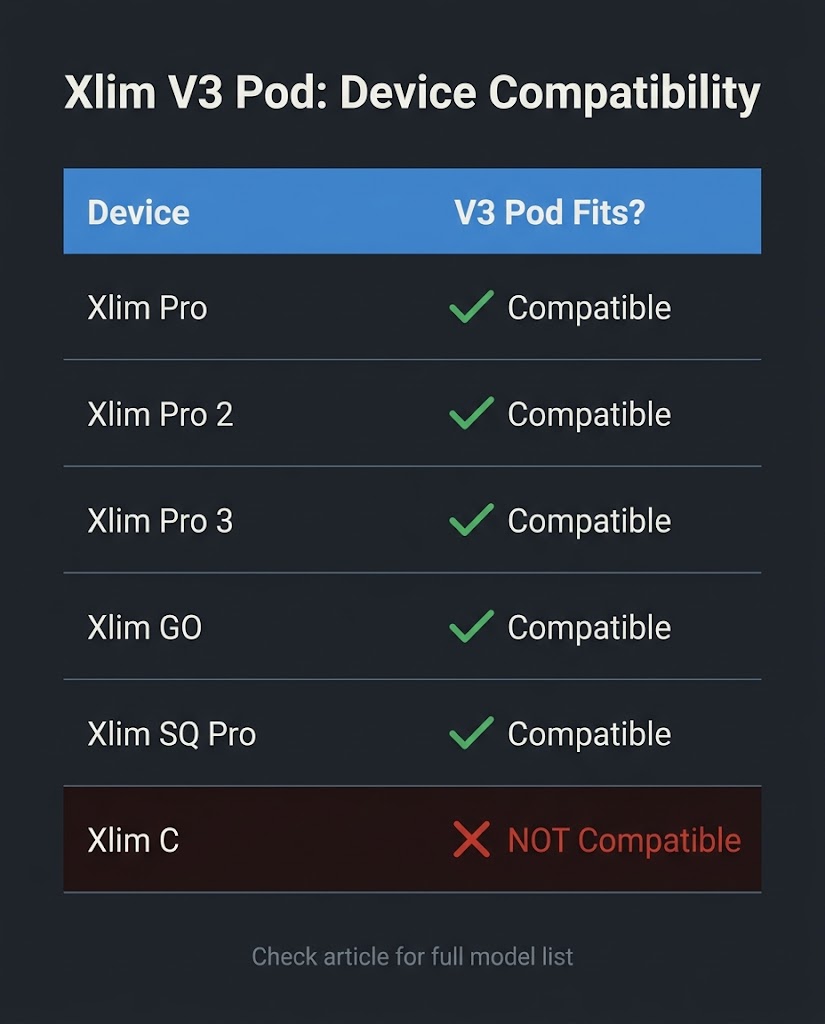

Confirmed compatible devices (verified against OXVA’s manufacturer pages):
| Device | Battery | Output Range | Notes |
| XLIM Pro | 1,000 mAh | 5-30W | 0.6Ω included in kit; all four V3 resistances supported |
| XLIM SQ Pro | Check your device | 5-30W | All four V3 resistances supported |
| XLIM SE 2 | Check your device | Check your device | All four V3 resistances supported |
| XLIM GO | 1,000 mAh | Up to 30W | Confirmed V3 compatible per OXVA page |
| XLIM GO 2 | Check your device | Check your device | Confirmed V3 compatible |
| XLIM Pro 2 | 1,300 mAh | 5-30W | Supports V3; note: does not support anti-burn and flavor replay functions with V3 pods |
| XLIM Pro 3 | 1,500 mAh | 5-30W | Confirmed V3 compatible |
| XLIM Classic Edition | Check your device | Check your device | Confirmed V3 compatible |
| XLIM C | N/A | N/A | NOT COMPATIBLE. Different coil system. |
For battery mAh and exact output figures on models marked “Check your device,” look at the printed spec label on your device or the documentation that came with it. We do not state figures we have not confirmed against the manufacturer’s own page, because a wrong wattage ceiling claim could lead you to push a device beyond what its chipset supports.
One compatibility note that catches buyers who have held on to older XLIM hardware: the original XLIM pod (V1) used a side-fill cartridge with a different form factor. If your device is a first-generation XLIM with a side-fill pod, confirm visually that your device accepts the V3 top-fill pod before ordering. The easiest check is whether your current pod has a side rubber plug (V2 and earlier) or a top fill port (V3).
Priming and First-Fill
This is the step most buyers skip and most leaks originate from. The wicking cotton inside the coil needs to be saturated before the coil is heated. Firing a dry coil even once burns the cotton and permanently degrades the coil’s flavour quality. There is no recovering from a burned coil; the pod must be replaced.

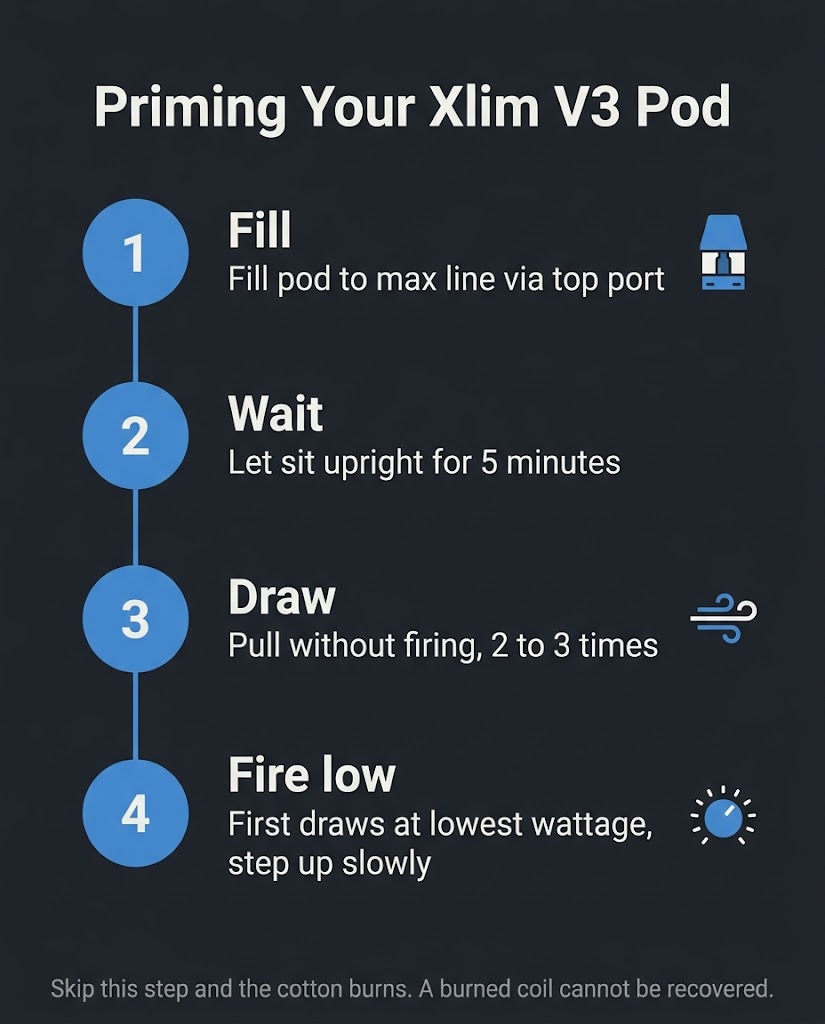

To prime correctly: fill the pod to the maximum line with your e-liquid. Let it sit upright, unused, for at least five minutes. Draw on it without firing the device two or three times to pull liquid into the wick ports by air pressure. Then take the first two or three draws at the lowest wattage setting available on your device, stepping up in increments until you reach your preferred wattage.
This process applies to every resistance variant.
The fill port on the V3 is top-access. The silicone plug on the original V3 design was reported by users on community forums to be thin and susceptible to being pushed inside the pod if pressed at an angle. On later production batches, OXVA updated the plug design. If your pod has a very thin silicone disc sitting loosely in the fill port rather than a firmer plug that seats positively, fill with care and press only vertically.
For battery care during charging, Battery University’s guide on charging lithium-ion cells establishes that partial charging cycles are not harmful to lithium-ion batteries and that charging to 100% consistently shortens cycle life compared to charging to 80-90%. The Xlim Pro’s 5V/2A charging rate is confirmed from OXVA’s official spec page. Charging from a USB-C port at higher amperage than 2A will not necessarily harm the device if the charger supports negotiation, but the device charges at 2A regardless of what the charger supplies.
Authentic vs Clone: How to Check Before You Pay
Clone XLIM V3 pods circulate in Dhaka’s informal market. We stock only verified-authentic pods and we say that plainly, but it is worth knowing how to check any batch regardless of who you bought from, including us.

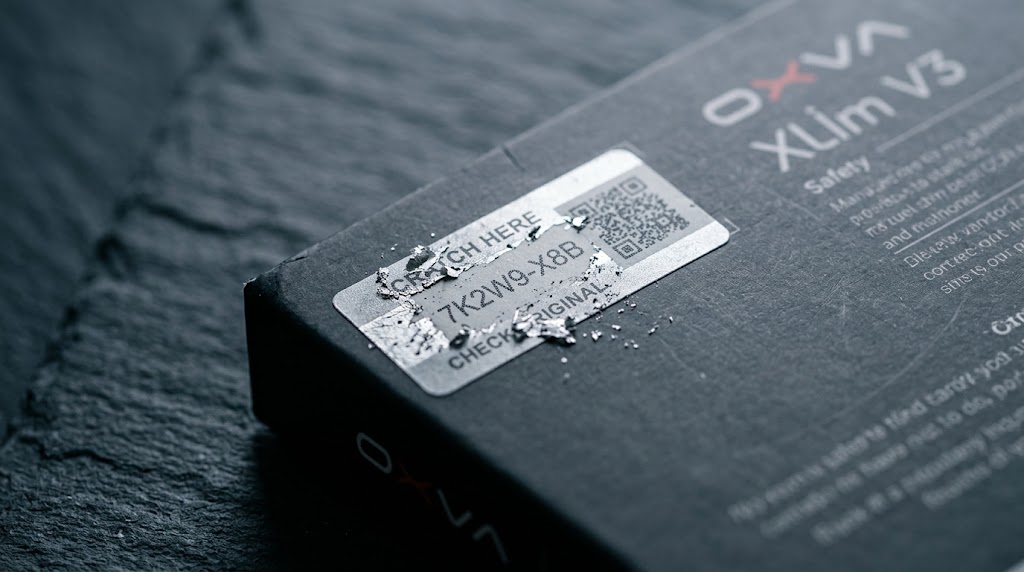

OXVA’s verification system is straightforward. Every genuine OXVA product carries an anti-counterfeit label on the packaging. Scratch off the protective coating to reveal either a QR code or an alphanumeric security code. Then enter the code at OXVA’s official product verification page or scan the QR code with your phone camera. A genuine product will return a confirmation. A code that has already been used returns a “code already verified” alert, which means the product was repackaged after the code was checked, almost always a sign of a second-hand or counterfeit unit. A code that fails entirely is a counterfeit.
Beyond the code check, physical inspection on arrival tells you most of what you need to know:
The coil resistance printed on the outside of the pod should match what the device displays when the pod is seated. If your device reads a resistance that differs by more than 0.05Ω from what is printed on the pod label, the coil specification is not what it claims. Clone pods frequently misprint resistance to match popular variants while using cheaper coil wire.
The pod-to-device connection should be firm with no lateral play. A genuine pod seats flush and holds position. A clone frequently shows visible side movement because the plastic tolerance is wider.
The fill port should operate cleanly. The genuine V3 fill port seals completely when closed. If liquid seeps from the fill area without a visible gap, the seal is substandard.
We stock these pods as an authorised retailer of OXVA products. Our Mohammadpur shop at Shop 22, Level 3, Sahabuddin Plaza, Adabar is a physical location where you can inspect the packaging and run the verification code before you leave. If you order online, run the code immediately on arrival. If it fails, contact us the same day and bring the packaging with the failed code intact.
Coil Life: What to Expect and What Affects It
We do not state a single coil lifespan figure. Any source that does is guessing or averaging across usage conditions so varied that the number means nothing to your specific setup.
The variables that determine how long a V3 pod coil lasts are: wattage relative to the coil’s recommended range, draw frequency per day, nicotine strength and VG/PG ratio of the liquid, and whether the coil was properly primed on first use. A 0.6Ω coil run at exactly 20-25W with a properly wicked 60% VG liquid, taken at 100 draws per day, will last a different amount of time than the same coil run at 25W with a thin high-PG liquid at 200 draws per day.
What we can say based on OXVA’s product design: running a coil above its specified wattage ceiling does not immediately destroy it, but it accelerates the degradation of the cotton wick. The wick cannot absorb liquid as fast as the mesh element can vaporise it at above-rated wattage. The result is a dry taste that progresses into a burnt taste. Once the cotton browns at the wick ports, flavour quality does not recover even if you drop the wattage back down. Stay within the OXVA-specified range for the longest serviceable coil life across all four resistance variants.
Ordering from KandyVape: Logistics Reference
The XLIM V3 Replacement Pod Cartridge is listed at 1,600 BDT on our product page. Orders dispatch daily at 3:00 PM, including weekends. Free shipping applies on orders of 3,500 BDT and above; delivery charges below that threshold vary by location and are listed at checkout.
Because we apply a strict no-return policy on all products, this guide exists precisely so that your first decision is the right one. Verify your device compatibility against the table above, select the resistance that matches your nicotine strength and draw preference, and confirm the fill-port orientation of your current pod before ordering. That is the correct order of operations.
FAQ
Which OXVA Xlim V3 pod resistance should I use with 20mg or 25mg nicotine salt?
The 0.8Ω pod running at 12-16W is the best pairing for 20mg to 25mg nicotine salt. The wattage range keeps vapour production moderate and the MTL draw style matches the behaviour most nicotine salt users prefer. The 1.2Ω at 10-12W is an option if you want a tighter draw with less vapour, but the wicking is slower and requires longer intervals between draws to avoid dry hits.
Does the Xlim V3 pod fit the Xlim C?
No. The XLIM C uses a different coil and pod format. OXVA’s official product page explicitly excludes the XLIM C from the “XLIM Series All Compatible” statement that applies to the V3 cartridge. If you own an Xlim C, check the printed label on your device or your original documentation for the correct pod designation before ordering.
Is the Xlim V3 top-fill or side-fill?
The V3 is top-fill. The fill port is accessed from the top of the pod. The V2 (and some earlier Xlim cartridge generations) used side-fill with a rubber plug on the side of the pod. These are physically different and the V3 and V2 are not interchangeable in terms of fill method, though both fit the same range of XLIM-series devices.
What happens if the Xlim V3 pod does not suit me after I order?
KandyVape’s policy is no return and no refund on all products. We state this clearly because it is the reality, and it is the reason this guide is written the way it is. If you are unsure about which resistance to order, visit our shop at Shop 22, Level 3, Sahabuddin Plaza, Adabar, Mohammadpur, where staff can walk through the compatibility and nicotine pairing decision before you commit.
When will my order dispatch?
Orders are dispatched daily at 3:00 PM, including weekends. If your order is placed before 3:00 PM on any day, it is in that day’s dispatch batch.
How do I know if an Xlim V3 pod I received is genuine?
Scratch the anti-counterfeit label on the packaging and enter the security code at OXVA’s verification page (oxva.com/pages/verify), or scan the QR code directly. A genuine product confirms on the first scan. A code that shows “already verified” on a product you have just received means the packaging has been opened and rescanned before reaching you. A completely invalid code is a counterfeit.
Contact us the same day with the packaging intact if either result appears.
Can I use freebase e-liquid in the Xlim V3 1.2Ω pod?
Freebase can be used in a 1.2Ω pod, but the pairing matters. At 10-12W, a high-PG freebase liquid at 3mg to 6mg will work and give a clean MTL draw. A high-VG freebase liquid may wick slowly at this wattage range and produce inconsistent flavour.
Nicotine salt is the design-intended liquid for the 1.2Ω coil. If you prefer freebase at low nicotine, the 0.6Ω coil at 20-25W is a better fit for most freebase liquid profiles.
Before You Order
If you have read this far, you have the information to make the right decision. Confirm your device is on the compatibility list above. Match your nicotine concentration and draw preference to the resistance table. Check the authenticity code when your order arrives. If any step is unclear, the Mohammadpur shop is a physical location where these questions can be settled before any money changes hands. Orders placed before 3:00 PM each day, including weekends, enter the same-day dispatch batch.
