If you own the original Vaporesso Luxe XR Max and someone has told you the Max 2 is a completely different device, they are wrong. If someone has told you it is exactly the same, they are also wrong. The difference is smaller than the marketing suggests and larger than “just a battery bump” implies, and the decision hinges almost entirely on two specifications and one coil pairing question that the comparison posts written outside Bangladesh never actually answer.
This is a spec-by-spec breakdown. Every figure below was verified against Vaporesso’s official product pages and GTX coil specification sheet before it went into this article, because we do not accept returns and a wrong compatibility claim in our content is a failed article, not an SEO problem.

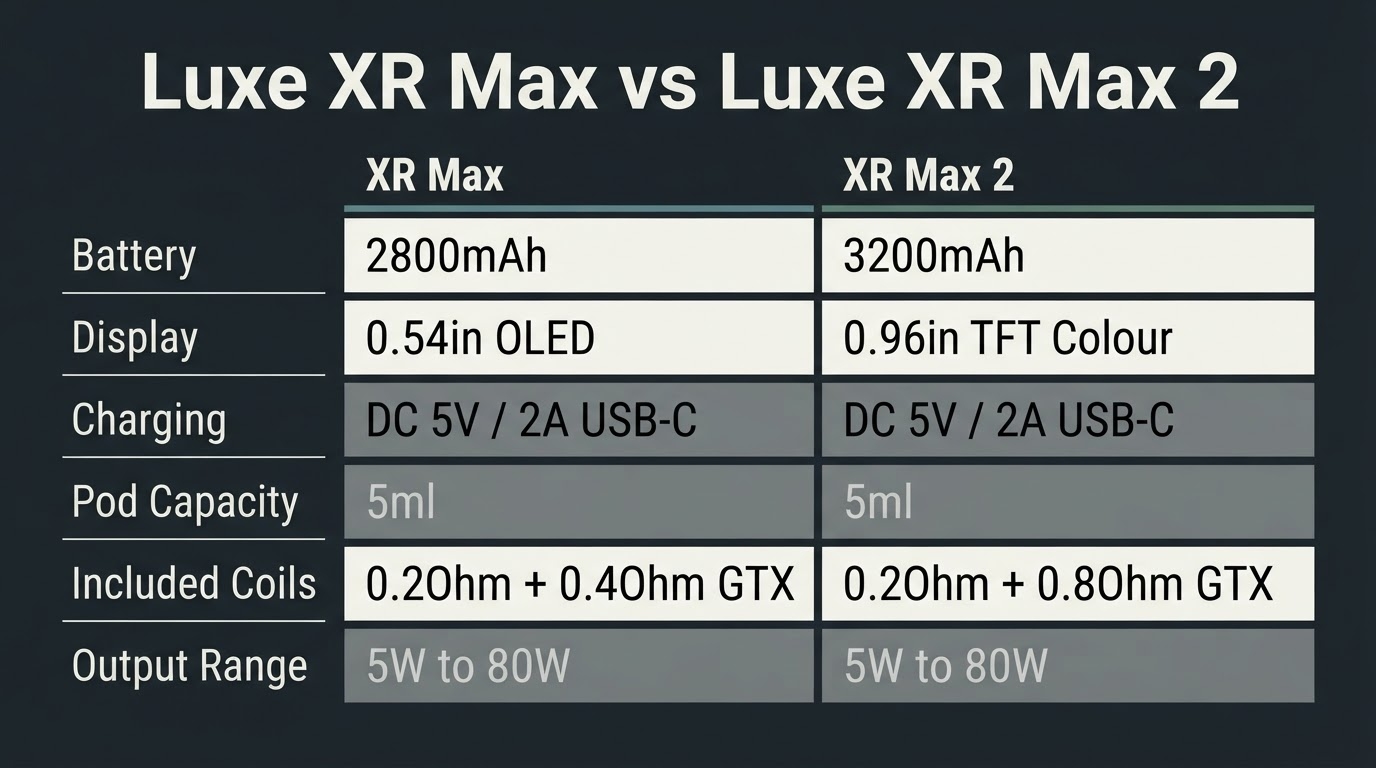

The Vaporesso Luxe XR Max 2 differs from the original Luxe XR Max in three areas: battery capacity (3200mAh versus 2800mAh), display (0.96″ TFT colour screen versus 0.54″ OLED monochrome), and the coil included in the kit (0.2Ω GTX dual mesh plus 0.8Ω GTX mesh, versus 0.2Ω plus 0.4Ω GTX mesh). The power range, chipset, pod compatibility, charging rate (DC 5V/2A, USB-C), and the full GTX coil platform are identical across both devices. Coils and pods are fully cross-compatible between the two kits.
Where the Two Devices Are Identical
Start here, because this is the part most comparison posts bury.
Both the Luxe XR Max and the Luxe XR Max 2 run on the same AXON chipset. They share the same 5W to 80W output range. They charge at the same rate: DC 5V/2A via USB-C. They use the same pod family: the LUXE XR DTL pod, the LUXE XR MTL pod, and all LUXE X pods are confirmed compatible with both devices. They accept the complete GTX coil platform — every resistance from 0.15Ω through 1.2Ω. They both offer Smart Mode, Pulse Mode, and Eco Mode. Pod capacity is 5ml on both (2ml in TPD-restricted markets).
If you own the original Max and your existing pods and coils are working, nothing changes when you put them in a Max 2. The coil you have been running will read the same resistance and the device will apply the same wattage range to it.
Where the Two Devices Are Different
There are exactly three meaningful differences, and they each matter differently depending on how you use the device.
Battery: 2800mAh versus 3200mAh
The Max 2 carries a 3200mAh battery, up from 2800mAh in the original. Vaporesso calls this MEGA BATT technology, describing it as a higher-density cell that fits the same physical footprint. The dimensions are close: 106.5 x 32.1 x 26mm for the original versus 108 x 32.1 x 26.4mm for the Max 2, a difference of 1.5mm in length and 0.4mm in depth.
What that 400mAh difference means in practice depends on what you run. At 12W to 16W through a 0.8Ω MTL coil, both batteries are going to last at least a day of moderate use — the Max 2 simply gives you more buffer before you reach for the cable. At 45W to 60W through a 0.2Ω dual mesh coil, battery drain is aggressive on both devices, and the 400mAh advantage on the Max 2 will represent roughly an hour to an hour and a half of additional vaping at high wattage. We have not tested this ourselves; those are the variables, and any figure without them is a claim we would not make.
Display: 0.54″ OLED Monochrome versus 0.96″ TFT Colour
The original Max uses a 0.54-inch OLED screen. The Max 2 uses a 0.96-inch TFT colour display with switchable lighting themes (Nebula, Vital, Wave). Both show the same information: battery level, wattage, resistance, and vaping mode. The TFT on the Max 2 is larger and reads more easily in daylight, which matters if you are setting wattage outdoors. The OLED on the original is not unusable, but it is smaller and has lower contrast in bright conditions.
If you primarily use the device at a desk or indoors and you set your wattage once and leave it, the display upgrade is aesthetic more than functional. If you change settings frequently or use the device in strong light, the larger TFT is a genuine improvement.
Included Coils in the Kit
This is the difference that most buyers miss, and it is the one most likely to cause a problem if you order coils separately without reading the kit contents first.
The original Luxe XR Max ships with a 0.2Ω GTX mesh coil and a 0.4Ω GTX mesh coil. The Luxe XR Max 2 ships with a 0.2Ω GTX dual mesh coil and a 0.8Ω GTX mesh coil. The 0.8Ω is an MTL coil. The 0.4Ω is a restricted-direct-lung (RDL) coil. These serve different draw styles and different nicotine strengths.
This does not mean one kit is better than the other. It means the two kits are optimised out of the box for different starting points. If you are switching from cigarettes and plan to use salt nicotine at 20mg to 50mg, the Max 2’s included 0.8Ω is the correct starting coil and the Max’s included 0.4Ω is not. The reverse is true if you are coming from a sub-ohm setup and want direct-to-lung output from day one. Both devices will run every GTX coil from the full range once you buy replacements, so this is a day-one setup question, not a permanent limitation.

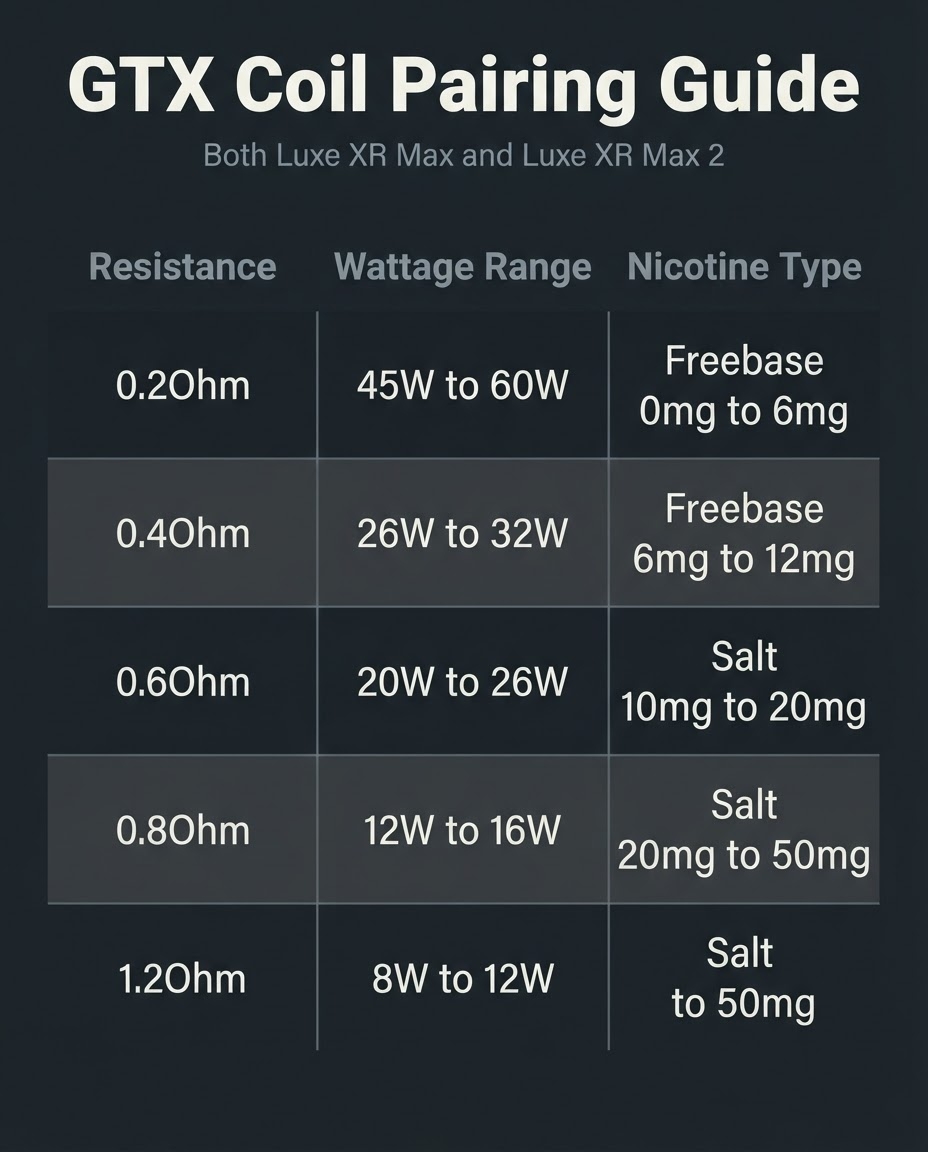

The GTX Coil Pairing Guide: Which Resistance for Which Setup
This table covers the complete GTX coil range that both devices accept. Draw style, nicotine strength, and VG/PG ratio recommendations are taken directly from Vaporesso’s GTX coil specification page. All wattage ranges are manufacturer-stated and should be treated as starting points, not fixed values — actual performance varies by liquid, wicking condition, and ambient temperature.
| GTX Coil | Resistance | Wattage Range | Best Wattage | Draw Style | Liquid Type |
| GTX Dual Mesh | 0.15Ω | 60W to 75W | 70W | DTL | Freebase 0mg to 6mg, VG/PG 40/60 to 30/70 |
| GTX Dual Mesh | 0.2Ω | 45W to 60W | 55W | DTL | Freebase 0mg to 6mg, VG/PG 40/60 to 30/70 |
| GTX Mesh | 0.3Ω | 32W to 45W | 40W | DTL | Freebase 0mg to 6mg, VG/PG 40/60 to 30/70 |
| GTX Mesh | 0.4Ω | 26W to 32W | 30W | RDL | Freebase 6mg to 12mg, VG/PG 50/50 to 40/60 |
| GTX Mesh | 0.6Ω | 20W to 26W | 24W | MTL | Salt nic 10mg to 20mg, VG/PG 50/50 to 40/60 |
| GTX Mesh | 0.8Ω | 12W to 16W | 16W | MTL | Salt nic 20mg to 50mg, VG/PG 50/50 to 40/60 |
| GTX Mesh | 1.2Ω | 8W to 12W | 11W | MTL | Salt nic 20mg to 50mg, VG/PG 50/50 to 40/60 |
The pairing logic behind this table is straightforward once you understand it.
Higher salt nicotine concentrations require higher resistance coils and lower wattage because the throat hit from 50mg salt nicotine through a 0.2Ω DTL coil at 55W would be severe enough to make the device unwearable. The e-liquid absorbs into the cotton faster at lower wattages, and the wick has time to saturate between draws. Push a high-concentration salt nicotine liquid through a DTL coil at high wattage and you are simultaneously burning the coil faster and producing an inhalation experience that most people stop tolerating within a week.
Propylene glycol (PG) is the carrier for nicotine and flavour in e-liquid. Vegetable glycerin (VG) produces vapour density. The PG/VG ratio listed in the table is what Vaporesso rates the coil to handle; a very high-VG liquid (70 VG and above) is too viscous to wick efficiently through a 0.8Ω or 1.2Ω coil and will cause dry hits. Vaporesso’s recommended VG/PG ranges for each coil are not arbitrary — they reflect the wicking port size in the coil head. A full compound profile for propylene glycol, including its recognised food-grade and USP status, is recorded in PubChem’s compound database (CID 1030).
Which Device Should You Choose
The answer depends on what you are starting from and what you prioritise.
Buy the Luxe XR Max if: you are replacing an existing device at the lowest available outlay, you use the device mainly indoors where display size is irrelevant, and you are comfortable that the included coils match your draw style. The current price is listed on the product page.
Buy the Luxe XR Max 2 if: you want the longer battery endurance from the 3200mAh cell, you use the device in varied light conditions and benefit from the larger TFT display, or you are starting fresh with MTL and the included 0.8Ω coil suits your intended setup from day one. The current price is listed on the product page.
Already own the original Max and it works? The dual mesh coils released alongside the Max 2 fit the original kit. You do not need to replace the device to access the newer coil technology. The battery and display are the only things you cannot upgrade without buying the Max 2.
We stock both devices and the full range of replacement GTX coils.

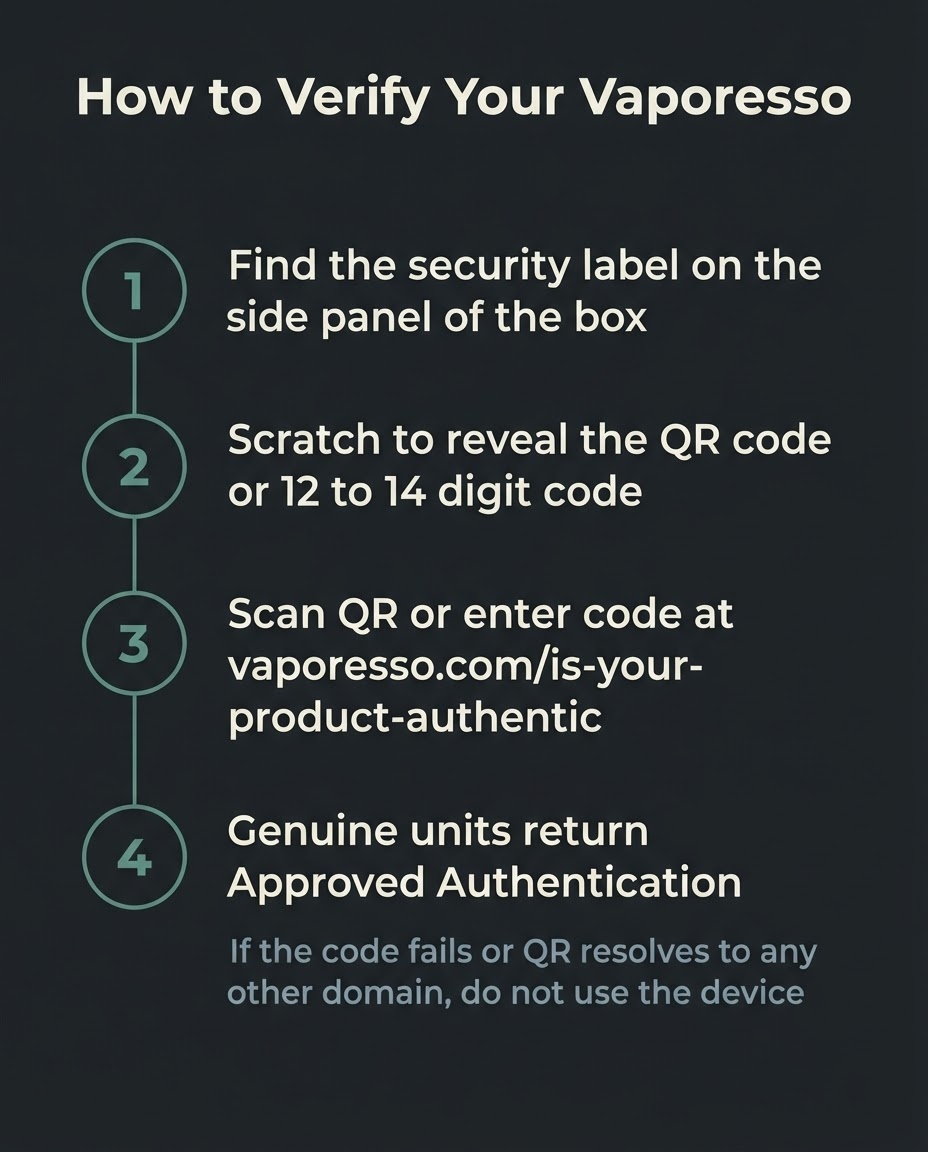

Verifying Authenticity Before You Pay
Both devices circulate as counterfeits in South Asian distribution channels, including through informal social media listings. A clone of the Luxe XR Max or Max 2 will often match the outer shell closely enough to pass a visual inspection at a distance. The specific checks that catch fakes are:

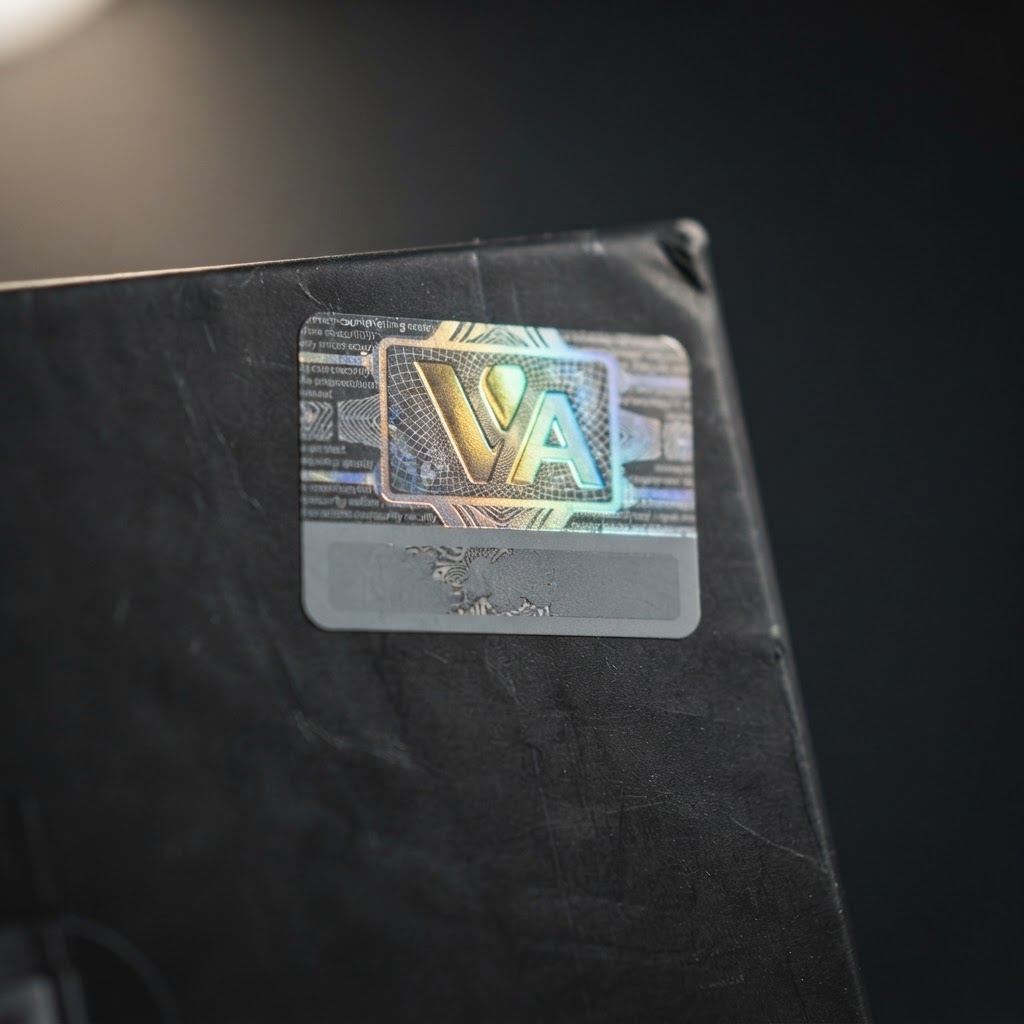

First, the anti-counterfeiting label. It sits on the side panel of the box. On genuine units, Vaporesso currently uses three label versions: two with scratch-to-reveal QR codes and one newer version with a dynamic optical element — when you tilt the label under light, the “V” and “A” lettering shift position and the OV logo animates. A static, non-animated label on the newest packaging type is a warning sign. A QR code that does not scan, or that resolves to any domain other than vaporesso.com, indicates a fake.
Second, the screen. A genuine AXON chipset fires up with a consistent animation at a predictable speed. Counterfeit chipsets often exhibit a perceptible lag on first boot, or the font on the display is visibly different from Vaporesso’s house font once you have seen a genuine unit. If you can inspect the device before paying, fire it up and check the display for font consistency and response speed.
Third, the build tolerances. Genuine pods seat firmly with a tactile click. Clone pods often fit loosely, sit at a slight angle, or have visible parting lines in the plastic that Vaporesso’s manufacturing does not produce.
Vaporesso maintains an official authentication page at vaporesso.com/is-your-product-authentic where you can enter the 12-digit or 14-digit code from the label and receive a verification result.
This takes approximately 30 seconds and costs nothing. Do this check with any unit you buy, including one from us. Authenticity verification is something we encourage before the transaction is completed at our Mohammadpur shop.
The No-Return Consideration
We explain the compatibility details in this article at the depth we do because KandyVape operates a strict no-return policy on all products. If you order a 0.4Ω RDL coil when your draw style and nicotine strength require a 0.8Ω MTL coil, the article you did not read before ordering is the reason that coil costs you money twice.
We would rather put the full coil pairing table here, in public, and lose the sale to someone who discovers the device is wrong for them, than process a customer dispute over a specification we stated incorrectly.
FAQ
Q: Are Luxe XR Max pods compatible with the Luxe XR Max 2?
Yes. Both devices share the same LUXE XR pod family — the DTL pod and the MTL pod — as well as the full range of LUXE X pods. Vaporesso confirms this on the Luxe XR Max 2 product page. If you are upgrading from the original Max and have existing pods and coils, they seat correctly in the Max 2 without modification.
Q: Does either device have auto-draw?
No. Both the Luxe XR Max and the Luxe XR Max 2 are fire-button-only devices. There is no draw-activated firing on either kit. If auto-draw is a requirement, these devices are not the right choice.
Q: What is Pulse Mode and does it matter?
Pulse Mode is an AXON chipset function that delivers power in regulated pulses rather than a continuous output. The result, according to Vaporesso’s description, is that the device maintains more consistent flavour output as the battery drains, rather than allowing wattage to taper as voltage drops. Both the original Max and the Max 2 carry Pulse Mode. It is the same implementation on both devices — this is not an upgrade exclusive to the Max 2.
Q: What nicotine strength should I use with each coil?
The GTX coil table in this article lists the ranges Vaporesso rates each coil for. The practical rule is: 0.8Ω and 1.2Ω coils suit 20mg to 50mg salt nicotine; 0.6Ω suits 10mg to 20mg salt nicotine or 12mg to 20mg freebase; 0.4Ω suits 6mg to 12mg freebase; 0.2Ω and 0.3Ω suit 3mg to 6mg freebase. Running high-concentration salt nicotine through a low-resistance, high-wattage coil produces a throat hit that most people find intolerable. This is a compatibility issue, not a device defect.
Q: When will my order arrive if I place it today?
Orders placed before 3:00 PM are dispatched the same day, including weekends. Delivery timelines vary by location. Check the for current delivery windows inside and outside Dhaka. Orders above 3,500 BDT qualify for free shipping.
Q: What if the device does not suit me after I try it?
KandyVape does not accept returns or issue refunds on any products. This policy applies without exception. The purpose of this article, and of every article we publish, is to give you enough information to make the right decision before you buy. If you have a question about coil compatibility, draw style, or nicotine pairing that this article did not answer, contact us before placing your order. Our Mohammadpur shop is also open for in-person consultation if you prefer to inspect a device before committing.
Q: How do I know the device I receive is genuine?
Scratch the security label on the side of the box and scan the QR code, or enter the 12-digit or 14-digit verification code at vaporesso.com/is-your-product-authentic. A genuine product returns an “Approved Authentication” confirmation. Do this as soon as the box arrives. If the code fails or the QR code does not resolve to vaporesso.com, contact us immediately and do not use the device.
Before You Order
If the coil table above answered your pairing question and you are ready to order, the Luxe XR Max and Luxe XR Max 2 are listed on our alongside current replacement GTX coil stock. Orders placed before 3:00 PM dispatch the same day. If you want to inspect either device in person, we are at Shop #22, Level 3, Sahabuddin Plaza, Adabar, Mohammadpur, Dhaka — bring your current device and we can confirm coil compatibility on the spot before you commit to a purchase.
